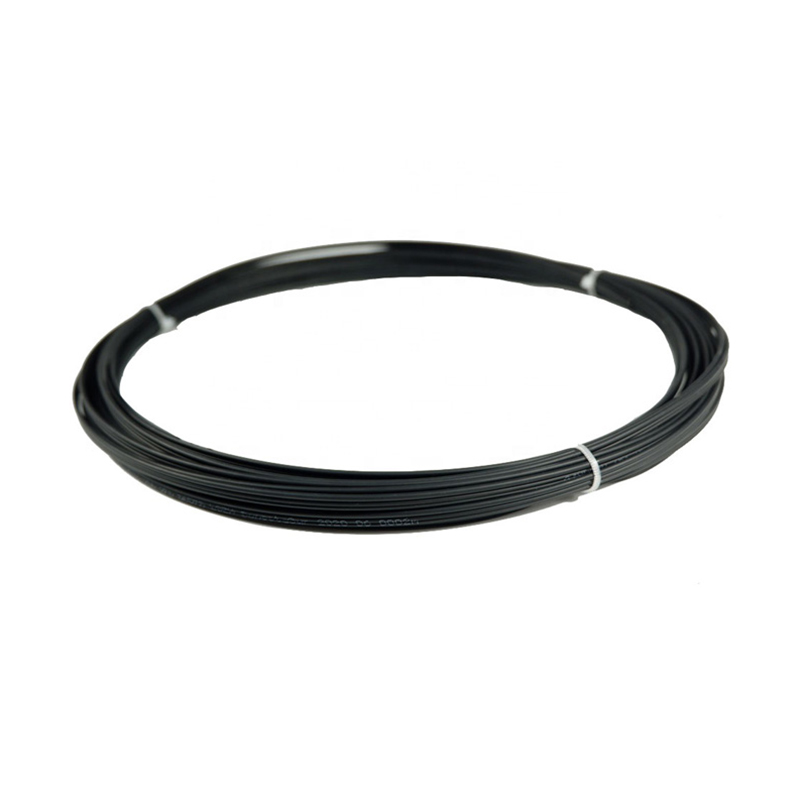

FTTH drop cable is light in weight and small in size, and it is suitable for receiving user terminals from FTTH network.
There are ribbon fiber or single fiber optic cable for sale. The non-metallic structures can also be provided.
TUOLIMA can customize the optical cable according to your requirements, and we have various fiber optic products for you to choose.
The optical fiber unit is positioned in the center. Two parallel steel wires are placed at two sides. Then the cable is completed with black or color LSZH sheath.
No. of fibers
≦ 0.4dB/km at 1310nm, ≦ 0.3 dB/km at 1550nm
Cable weight (Approx.)
Characteristics of GJXFH-4B Fiber Optic Drop Cable
Optical fiber characteristics (G.657A FIBER)
Mode field diameter
8.6 ± 0.4
125.0 ± 0.7
Core concentricity error
245 ± 5
Coating/cladding concentricity error
Cable cut-off wavelength
Macro-bend loss (1 turn,7.5mm radius)
Proof stress level
Packing material: Non-returnable wooden drum and standard carton.
Both ends of cable are securely fastened to drum and sealed with a shrinkable cap to prevent ingress of moisture.
Cable printing: The sequential number of the cable length shall be marked on the outer sheath of the cable at an interval of 1meter ± 1%.
The following information shall be marked on the outer sheath of the ftth drop cable at an interval of about 1 meter.
Cable type and number of optical fiber
Month and Year of Manufacture
Drum marking: Each side of every wooden drum shall be permanently marked in a minimum of 2.5~3 cm high lettering with following:
Manufacture name and logo
Cable type and number of fibers
Gross and net weight
