TGJS-303A Splitter Type Fiber Optic Splice Closure

TGJS-303A Splitter Type Fiber Optic Splice Closure


The body of this closure splitter box is made of fiberglass and PP as customer's request that has extremly high tensile strength, waterproof and dustproof protection function, reaching IP68.


This joint closure optic splitter box can be equipped with 1*16  Mini splitter& 1*16 card type splitter and 16 SC adapters. It can be mounted wall, aerial or holding-pole with one or two pieces of metal board tightly attached onto the cable or pole.


TGJS-303A Splitter Type Fiber Optic Splice Closure
TGJS-303A Splitter Type Fiber Optic Splice Closure
TGJS-303A Splitter Type Fiber Optic Splice Closure
TGJS-303A Splitter Type Fiber Optic Splice Closure
TGJS-303A Splitter Type Fiber Optic Splice Closure
GET A QUOTE

Details of TGJS-303A Splitter Type Fiber Optic Splice Closure

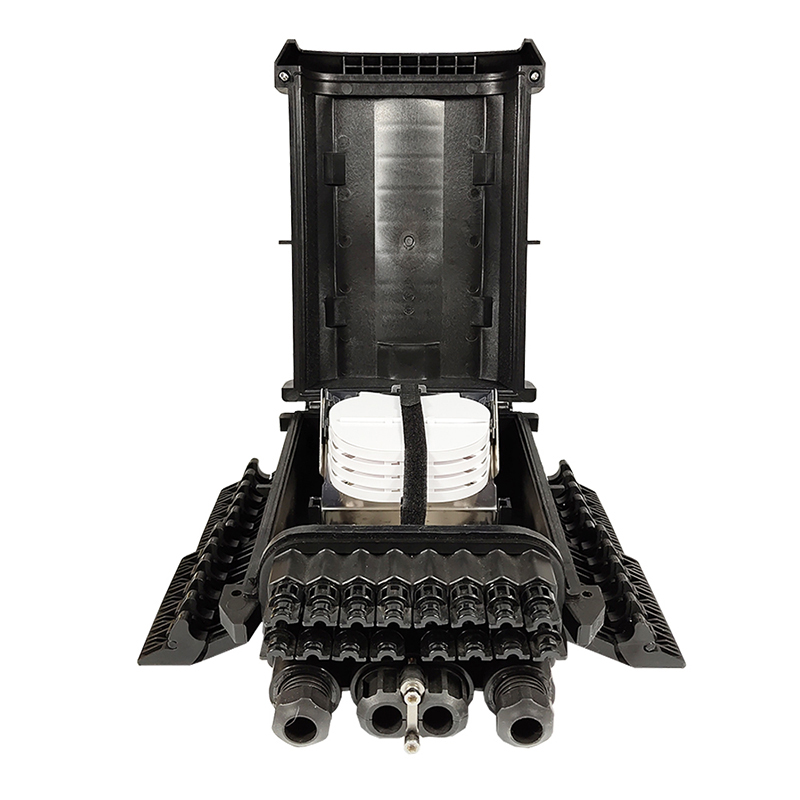

  • Inside Splitter place look: Could install a 1x16 mini splitter or a 1x16 card type splitter

  • Inside splice tray look: 24 core/tray, 4pcs trays

  • Stainless steel accessory

  • Complete installation accessory for wall mounting(holding-pole accessory should contact sales)


Specification of TGJS-303A Splitter Type Fiber Optic Splice Closure

Dimension(mm)

380×245×130

Max. capacity(Single fiber)

16

Weight(kg)

4.5~5

Sealing type

Mechanical

Cable ports

1 input cable port for un-cut cable from diameter from10~17.5mm. 2 output cable ports for cable diameter from 8~17.5mm.
16 output cable ports for cable diameter less than 4mm.

Single splice tray capacity(Single fiber)

16

Splice tray quantity

2pcs





Packing And Comments Of TGJS-303A Splitter Type Fiber Optic Splice Closure

This equipment packaging produced by TUOLIMA is moisture-proof and earthquake-proof. The accessories are packed first plastic  bags, then into the boxes with plastic bags for sealing. There are moisture-proof and earthquake direction signs outside the boxes.


It can't be inverted in the transport and be free from rolling when carrying. Please load carefully and prevent the collision. You should prevent it from heavy rain before installation. The temperature in the transport should be controlled between-35℃ to +55℃.


The excessive accumulation of goods should be stored on the cartons. The treasury should away from the erosion of corrosive gas equipment and the temperature should be below 45℃ and higher than -5℃, and relative temperature should not be high in long-term(generally less than 75%).

Package dimensions(W*H*D)

520mm*420mm*330mm

Package material

Standard carton for sea shipping or air express

Weight

4.5kgs



Video of TGJS-303A Splitter Type Fiber Optic Splice Closure
