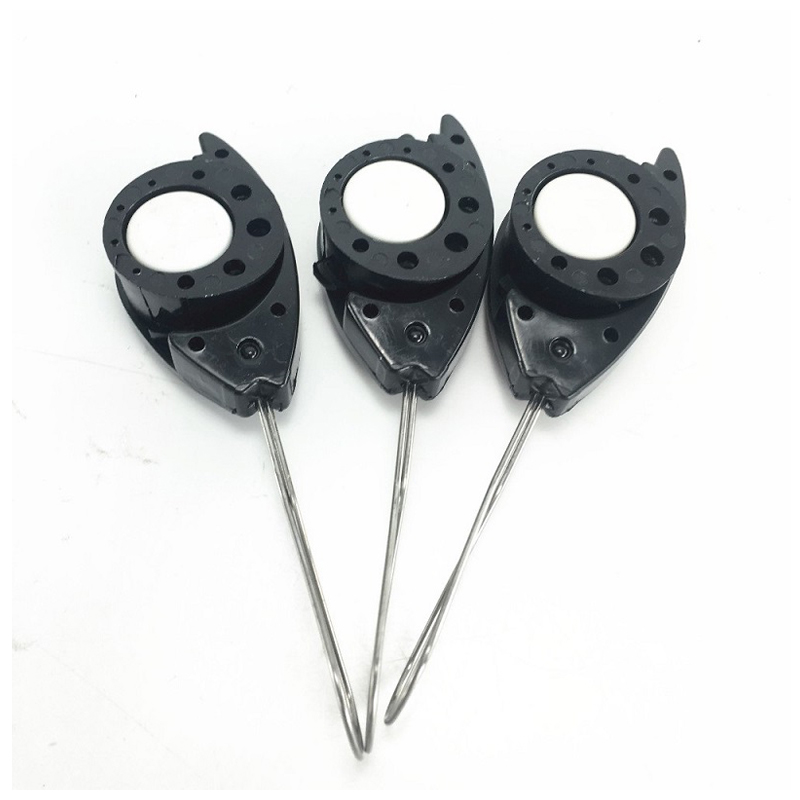

FISH series are tension clamps for FTTH drop cable.
Fish clamp FTTH can be used in anchoring, turning, suspension fiber optic cable routes. Without suspension wire (in case of fiber optics diameter is 3.3mm*2.0mm): 2turns. With suspension wire (in case of fiber optics diameter is 5.0mm*2.0mm): 1 turn.
All the assemblies passed the tensile tests and temperature-cycling test;
Good anti-corrosion performance with TUOLIMA style;
Fiberglass reinforced plastic and stainless steel;
Use with YK and Fish type;
Can be used in anchoring, turning, suspension optical fiber cable routes.
Code | Material | Round Cable Size | Code | Material |
FISH Drop Cable Clamp | Alloy for anchor body; 201 stainless steel for wire | 3-7mm | FISH SS Wire Bail | Alloy for anchor body; 201 stainless steel for wire |
Weight | Dimension | Application | Weight | Dimension |
26.2g | 126.5mm*40mm*20mm (L*W*D) | Tension Clamp for figure 8 cable | 26.2g | 126.5mm*40mm*20mm(L*W*D) |
Package contents | Fish customized Package 500pcs/ctn |
Package dimensions (W*H*D) | 38*30*30cm |
Package material | Standard carton for sea shipping or air express |
Weight | 13.6kgs |
Fish series are tension clamps Tor FTTH drop cable. Fish clamp FTTH, can be used in anchoring, turning, suspension optical fiber cable routes.
Without suspension wire(in case of fiber optics diameter is 3.3mm*2.0mm): 2 turns.
With suspension wire(in case of fiber optics diameter is 5.0mm*2.0mm): 1 turn.
All the assemblies passed the tensile tests, operation experience with temperatures ranging from -60℃ up to +60℃ test, temperature-cycling test.
