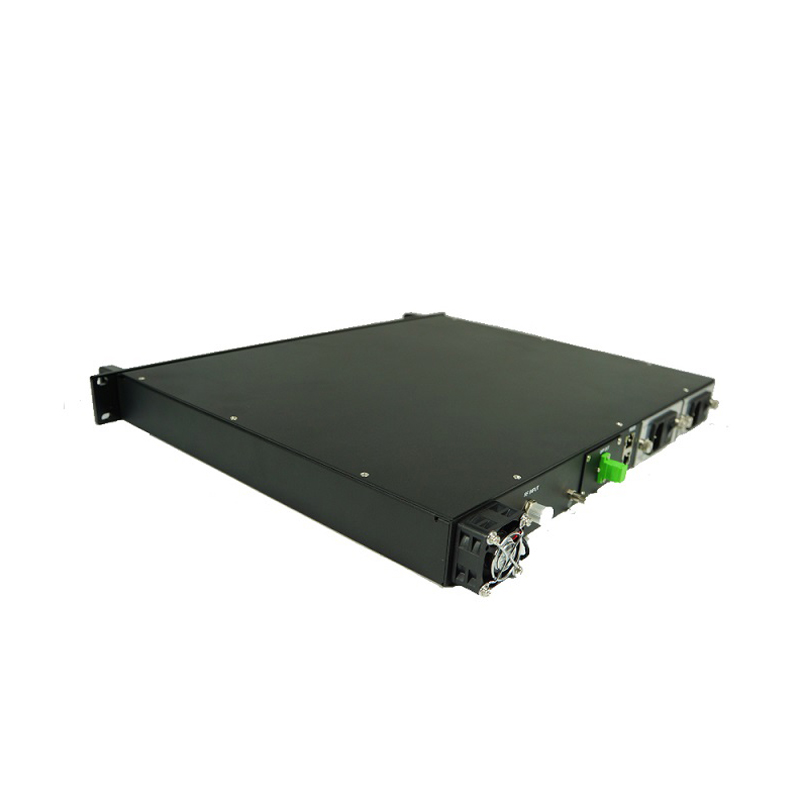

A 1550nm Internal Transmitter

A 1550nm Internal Transmitter


According to the TUOLIMA planning and PON standards, 1550nm is defined as the transmission wavelength for HFC downstream.


The high cost of 1550nm external modulated transmitter and dispersion effects of 1550nm directly modulated make network transformation difficult. Thus we create the 1550nm directly modulated optical transmitter with electronically controlled dispersion compensation. This fiber transmission equipment supports up to 1.2GHz band and DOCSIS 3.1 system.


With two RF inputs and high isolation, 1550 fiber optic transmitters enables the signal transmission of QAM and IPQAM smoothly. Support a transmission distance of 50KM with electronically controlled dispersion compensation. Built-in CWDM is optional for multi-wavelength networking.


A 1550nm Internal Transmitter
A 1550nm Internal Transmitter
A 1550nm Internal Transmitter
A 1550nm Internal Transmitter
A 1550nm Internal Transmitter
A 1550nm Internal Transmitter
GET A QUOTE
Watch the Video

Features of A 1550nm Internal Transmitter

  • Imported DFB laser named Mitsubishi or Ortel for distance ≤20km

  • The internal RF driving amplifier and controlling circuit ensure the best C/N.

  • Good Stability

  • LED display

  • Trouble alarm system and on line fiber cable management.

  • RJ 45 ports for snmp and http management

Specification of A 1550nm Internal Transmitter

Model OLTI-1550-

02

04

06

08

10

Optic Power (mW)

2

4

6

8

10

Optic Power(dBm)

3.0

6.0

7.8

9.0

10.0

Wavelength  (nm)

1550±10

Fiber Connector

FC/APC、SC/APC、SC/UPC

Bandwidth(MHz)

47~862

Channels

84

CNR  (dB)

≥51

CTB  (dBc)

≥65

CSO (dBc)

≥60

RF Input Level(dBμV)

83±5

Band Unflatness

≤0.75

Power Loss(W)

≤30

Power Voltage(V)

220V(110~254)

Working Tem(℃)

0~45

Specification

19"×15"×1.75"
