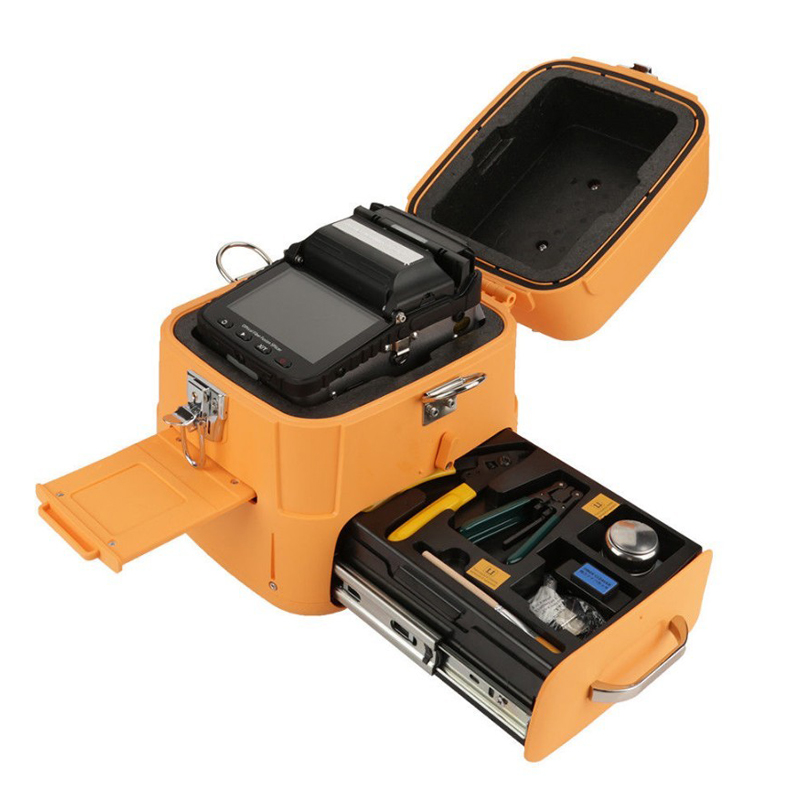

Details of AI-9 Fusion Splicer

1. 5 inches high Resolution colorful LCD display, image can be turned according to position
2. Average splice time: 10 second
3. Average tube-heat time: 25 second
4. Automatic heat mode
5. Lithium battery: Rechargable and up to 200 times of continuous splice and heat after fully charged
6. X or Y axis Separately views with 360 times magnification, or Simultaneously 220 times
7. Cutting-edge technology for image processing
8. New technology of fiber core alignment, enhanced accuracy, PAS Technology
9. New developed technology of FTTH tool providing strong wind and dust resistance
10. Automatic self-inspection: Display inspection, Forward inspection
11. Cleave length: 9~16mm (0.25mm) 10~16mm (0.9mm)
12. Splicing mode: Auto & Manual & Full-Auto
13. Storing 6,000 groups of latest splice results
14. New technology adopted by TUOLIMA of fiber core alignment, enhanced accuracy
15. New 3-in-1 cutting fixture for rubber-insulated wire, pigtail & bare fiber (Patented technology)
16. New Multipurpose 1+N fixture (Patented technology)
17. 1+N: one 3-in-1 fixture ( for rubber-insulated wire, fiber optic pigtail, bare fiber) & optional fixtures ( for SC/LC/FC connector).

Advantages of AI-9 Fusion Splicer

• The ai9 splicing machine adopts new technology of fiber core alignment, enhanced accuracy


• This fast new fusion splicer uses new 3-in-1 cutting fixture for rubber-insulated wire, pigtail & bare fiber (Patented technology)

• The ai9 splicer has new Multipurpose 1+N fixture (Patented technology)

Packing and Comments of AI-9 Fusion Splicer

Package size	1PC/CTN/40X36X34cm
Package material	Standard carton for sea shipping or air express
Weight	8.5kgs
