TLM-N4-24A 24 Core Distribution Box

TLM-N4-24A 24 Core Distribution Box

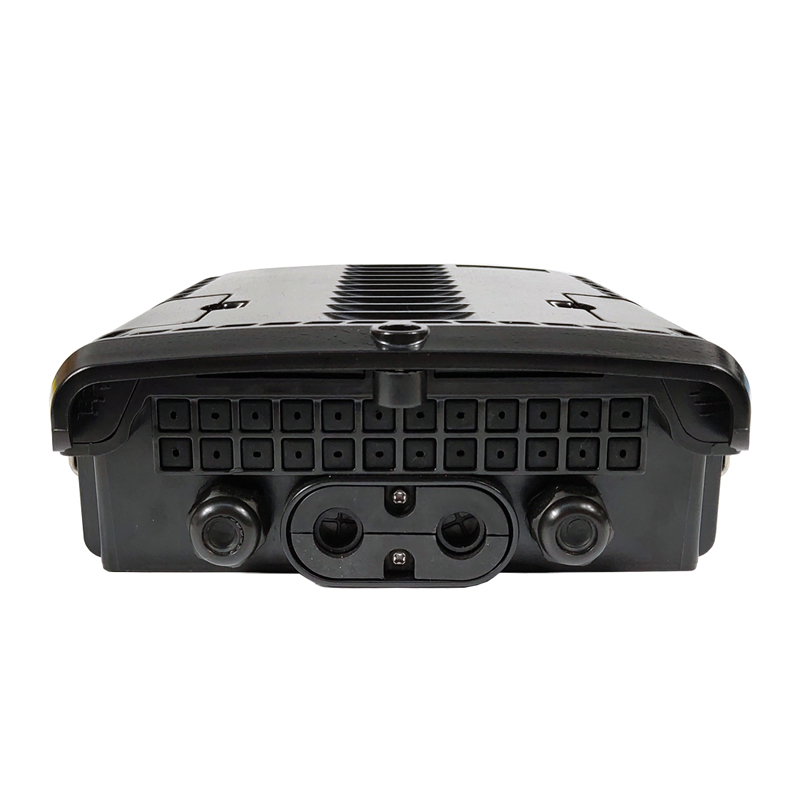

TLM-N4-24A  is a 24 cores fiber optic terminal box. The body of this box is made of 70% PC and 30% ABS.


It has the advantage of high pressure resistance and corrosion resistance. The biggest feature of this ftth splitter box is the design of a new drop cable outlet. Compared with the normal style of fiber terminal box, the optical drop cable passes directly from the surface makes it easier to install and maintain. At the same time, the waterproof level reaches IP65. This box produced by TUOLIMA can be equipped with 1*24 Mini splitter and 24 adapters.



outdoor optical distribution box
outdoor fiber distribution box
fiber optic distribution unit
ftth box
fiber optic box
fibre optic distribution box
Cable distribution box
optical fiber distribution box
GET A QUOTE
Watch the Video

Features of TLM-N4-24A 24 Core Distribution Box

  • Clip-lock new design

  • Wet-proof  water-proof  dust-proof  anti-aging, protection level up to IP65

  • Clamping for feeder cable and drop cable, fiber splitting, splicing, fixation, storage, distribution...etc all in one

  • Up to 24 FTTH drop cable

  • Wall and pole mountable

Specification and Ordering Information Of TLM-N4-24A 24 Core Distribution Box

MODEL

TLM-N4-24A

Max. Capacity

24

Dimension(L×W×H)

290*210*82mm

N.W. (kgs)

1.36 KG

IP level

IP 65

Material

70%PC+30%ABS

In/out port

1 uncut cable port

2 Cable glands

24 Drop Cable Ports
