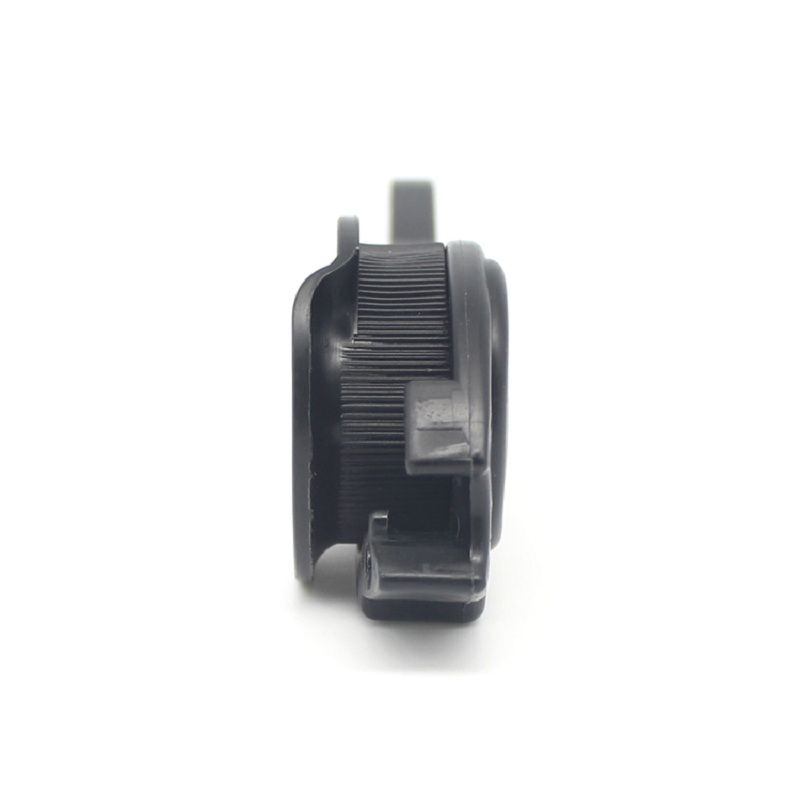

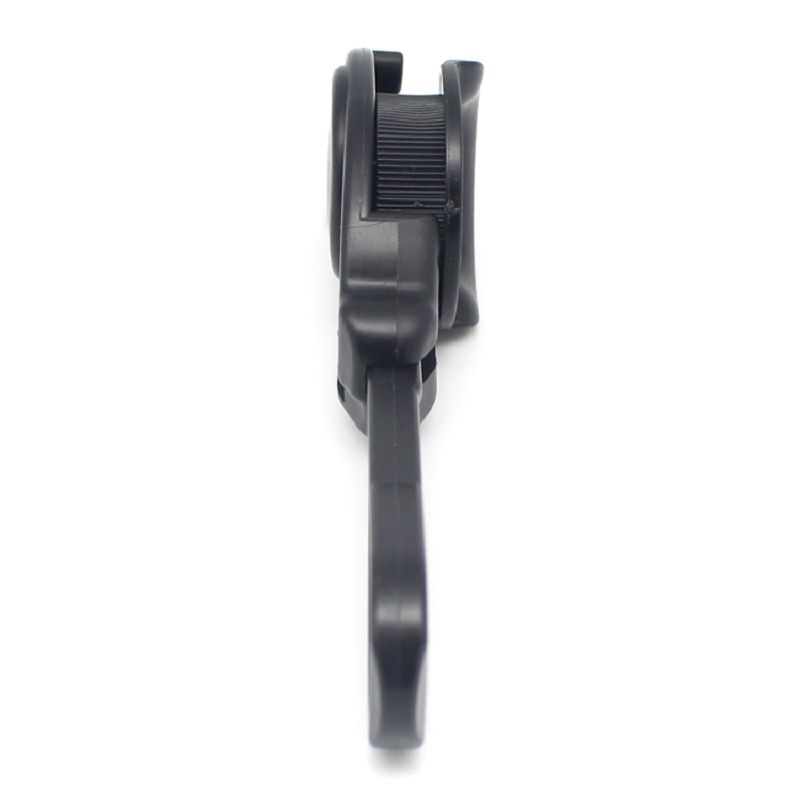

Fish-02 Fiber Optic Drop Cable Clamp

Fish-02 Fiber Optic Drop Cable Clamp


FISH-02 series drop fiber optic cable clamps are tension clamps for FTTH drop cable.


Fish FTTH fiber optic clamps, can be used in anchoring, turning, suspension optical fiber cable routes. Without suspension wire (in case of fiber optics diameter is 3.3mm*2.0mm): 2turns. With suspension wire (in case of fiber optics diameter is 5.0mm*2.0mm): 1 turn.


As one of the professional optical fibre manufacturing companies, TUOLIMA can customize the FTTH Drop Flat Fiber Optic Cable Clamps according to your requirements.


fish tension clamp
FTTH drop cable clamp
drop fiber optic cable clamp
fiber optic drop flat cable clamps
fiber optic tension clamp
GET A QUOTE

Details of Fish-02 Fiber Optic Drop Cable Clamp

  • All the fish tension clamp assemblies passed the tensile tests and temperature-cycling test;

  • Good anti-corrosion performance;

  • Fiberglass reinforced plastic and stainless steel;

  • Use with YK and Fish type;

  • Can be used in anchoring, turning, suspension optical fiber cable routes.


Specification of Fish-02 Fiber Optic Drop Cable Clamp

Code

Material

Round Cable Size

Material

Fish-02 Drop Cable Clamp

Alloy for anchor body; 201 stainless steel for wire

3-7mm

SS Wire Bail

Alloy for anchor body; 201 stainless steel for wire

Weight

Dimension

Application

Weight

Dimension

26.2g

126.5mm*40mm*20mm

(L*W*D)

Tension Clamp for figure 8 cable

26.2g

126.5mm*40mm*20mm(L*W*D)



Packing and Comments of Fish-02 Fiber Optic Drop Cable Clamp

Package contents

Fish-02 customized package 500pcs/ctn

Package dimensions (W*H*D)

38*30*30cm

Package material

Standard carton for sea shipping or air express

Weight

13.6kgs


Video of Fish FTTH Drop Flat Fiber Optic Cable Clamps
